1.Brief Description

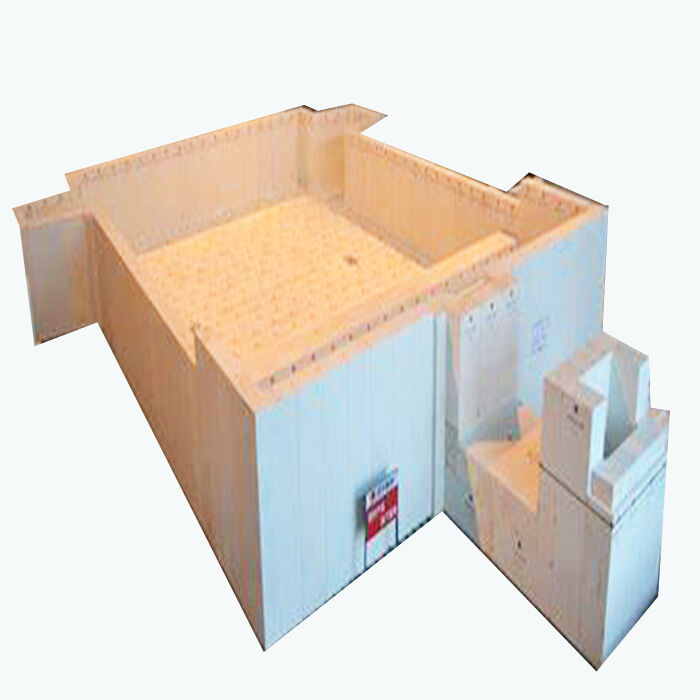

An ‌End-Fired Furnace‌ (is also called as ‌End-Port Furnace‌ or ‌Horseshoe-Fired Furnace‌) is an industrial thermal processing unit where ‌combustion burners are positioned at one or both ends‌ of the furnace chamber. The hot gas flow from combustion moves along the furnace direction, transferring heat through a glass melting furnace designed with longitudinally arranged combustion ports and a U-shaped flame path.

The end fired furnace has a small flame coverage area, the flame reversing brings periodic temperature fluctuation and hot spot movement.

In addition, the number of port limits the furnace width and furnace scale. End fired furnace is suitable for making all kinds of hollow products (bottles, jars, vessels, chemical instruments, bubble shells, glass tubes, etc.), pressing products and glass balls without special requirement on the quality of glass.

Its typical melting capacity is 30 – 500 t/d, in some cases up to 700 t/d can be achieved. Limitations in furnace size result from flame length and crown span width, especially of the burner ports.

JEFFER Engineering has designed and supplied the end-fired furnaces for the customers in China and aboard.

2.Type of End Fired Furnace

3. Heating Energy of Furnace

We can supply different kinds of heating type furnace. Including:

• Natural gas
• Heavy oil
• Electricity
• LPG
• Coal gas
• Light diesel oil for stand-by

4.Furnace Structure

• Glass melting section
• Heat source supply section
• Dog house
• Cooling section
• Waste heat recovery section
• Gas supply and waste gas exhaust

5. Supply Equipment and Materials

6. Technical Advantages

FAQ

Q: Who we are?

A: JEFFER Engineering and Technology Co., Ltd is a professional engineering company specialising in project design, engineering technology consulting, engineering, procurement, construction (EPC), and project operation management.

Q: Can you customize the products?

A: Yes, we have an experienced professional team ready to make design according to the requirement of customers.

Q: Do you offer installation on site overseas?

A:Yes, we can provide our engineer to supervise the installation work on site or provide the the whole installation team on site to finish the project.

Q: Confidential protection provide?

A: Strict drawing management system eliminates the risk of the leakage and protects your interests.
